Bulkhead RF Coaxial Connector TNC BNC UHF N SMA SMB SSMA SSMB SMC SSMC Panel Mount

RF coaxial connectors are critical components in RF (radio frequency) systems, used to connect various types of equipment and antennas. Each type of connector is designed for specific frequency ranges and applications, ensuring reliable signal transmission and minimal loss. Here’s a detailed overview of the common RF coaxial connectors you mentioned:

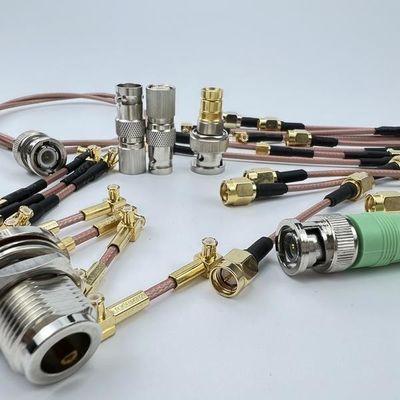

Types of RF Coaxial Connectors

1. TNC (Threaded Neill-Concelman)

• Frequency Range: Up to 11 GHz
• Features: Threaded coupling mechanism for a secure connection. Provides good performance at higher frequencies.
• Applications: Used in RF and microwave systems, antennas, and wireless communications.

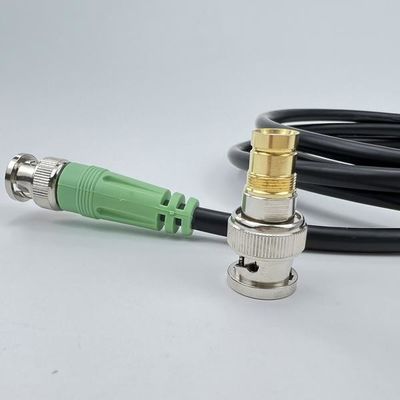

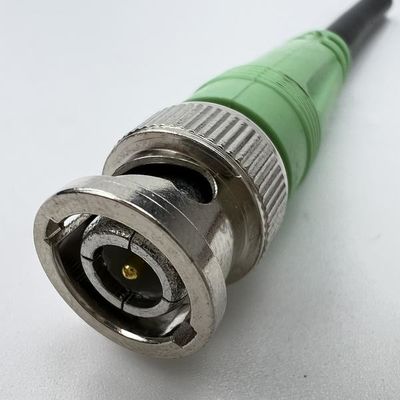

2. BNC (Bayonet Neill-Concelman)

• Frequency Range: Up to 4 GHz
• Features: Bayonet coupling mechanism for quick connect/disconnect. Known for its reliability and ease of use.
• Applications: Common in video and RF applications, test equipment, and instrumentation.

3. UHF (Ultra High Frequency)

• Frequency Range: Up to 1 GHz
• Features: Threaded or bayonet coupling. Suitable for lower frequency applications.
• Applications: Used in radio communications, CB radios, and some older antenna systems.

4. N (Type N)

• Frequency Range: Up to 18 GHz
• Features: Threaded coupling, known for its durability and excellent performance at high frequencies.
• Applications: Used in telecommunications, radar, and other RF systems requiring robust connections.

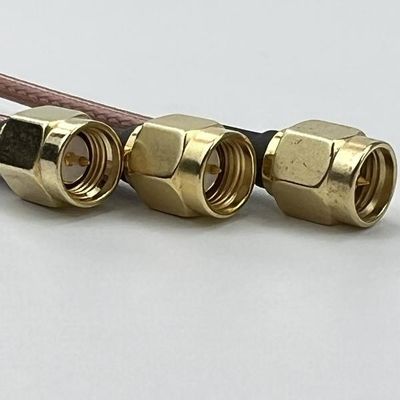

5. SMA (SubMiniature version A)

• Frequency Range: Up to 18 GHz
• Features: Threaded coupling, compact design, and precision for high-frequency applications.
• Applications: Widely used in RF test equipment, antennas, and mobile communications.

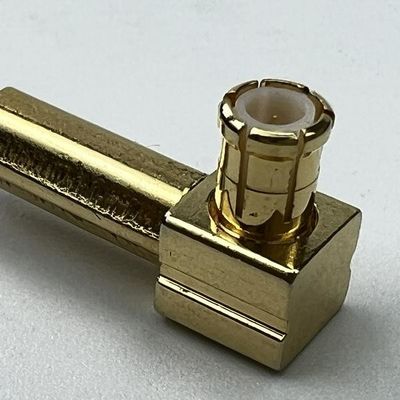

6. SMB (SubMiniature version B)

• Frequency Range: Up to 4 GHz
• Features: Snap-on coupling mechanism. Smaller than SMA connectors, allowing for compact designs.
• Applications: Used in applications where space is limited, such as mobile devices and instrumentation.

7. SSMA (SubMiniature version A, Small)

• Frequency Range: Up to 26.5 GHz
• Features: Compact design, threaded coupling for high-frequency applications.
• Applications: Used in high-frequency communication systems and precision instrumentation.

8. SSMB (SubMiniature version B, Small)

• Frequency Range: Up to 12.4 GHz
• Features: Smaller size with a snap-on coupling mechanism, similar to SMB but with higher performance.
• Applications: Suitable for high-density applications and systems where space is constrained.

9. SMC (SubMiniature version C)

• Frequency Range: Up to 10 GHz
• Features: Threaded coupling, provides high performance in a compact form.
• Applications: Used in telecommunications and high-frequency RF applications.

10. SSMC (SubMiniature version C, Small)

• Frequency Range: Up to 12.4 GHz
• Features: Smaller size with improved performance over standard SMC connectors.
• Applications: High-density applications and high-frequency RF systems.

Panel Mount Connectors

Panel mount connectors are designed to be mounted on the surface of a panel, allowing for easy access and connectivity to equipment or systems. They come in various types, including:

• TNC Panel Mount: Provides secure, threaded connections suitable for both panel and bulkhead mounting.
• BNC Panel Mount: Common for video and RF applications, offering quick connect/disconnect capabilities.
• N Panel Mount: Durable and reliable for high-frequency and high-power applications.
• SMA Panel Mount: Compact and used where high-frequency connections are needed.
• SMB and SSMB Panel Mount: For compact, snap-on connections in space-constrained environments.
• SMC and SSMC Panel Mount: For high-frequency and compact applications with threaded connections.

Applications

• Telecommunications: Connecting antennas, base stations, and RF equipment.
• Radar Systems: Providing reliable connections for high-frequency signals.
• Test and Measurement: Used in RF testing equipment and instrumentation.
• Broadcasting: Connecting equipment in TV and radio broadcast systems.
• Military and Aerospace: For rugged and reliable connections in harsh environments.

When selecting connectors, consider factors such as frequency range, coupling mechanism, size, and application requirements to ensure optimal performance and compatibility.
