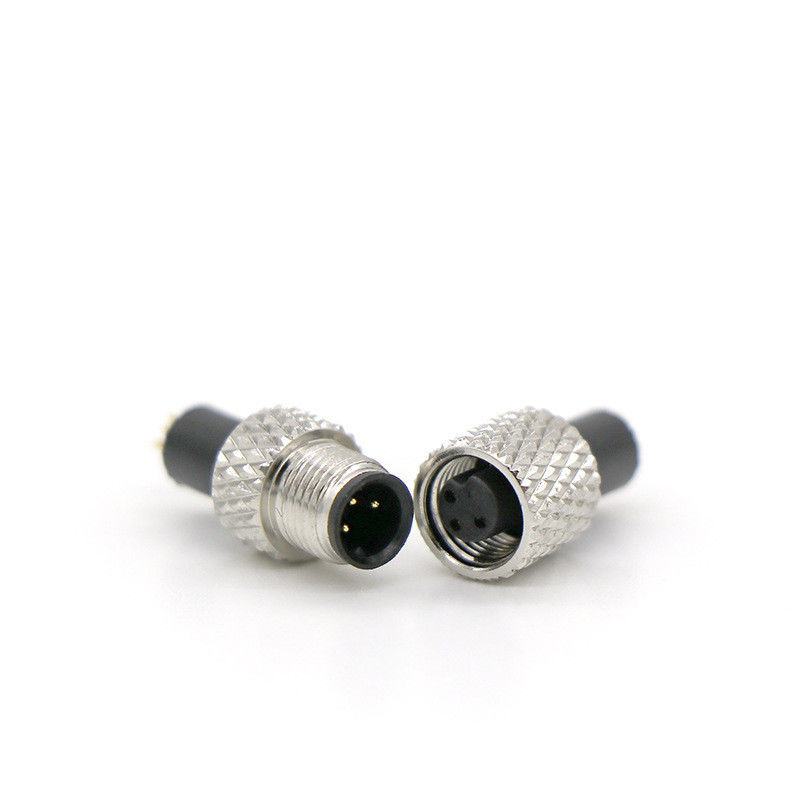

ROHS 5mm IP67 Waterproof M5 4 Pin Connectors For Electrical
ROHS 5mm IP67 Waterproof M5 4 Pin Connectors For Electrical
ROHS 5mm IP67 Waterproof M5 4 Pin Connectors For Electrical
ROHS 5mm IP67 Waterproof M5 4 Pin Connectors For Electrical
ROHS 5mm IP67 Waterproof M5 4 Pin Connectors For Electrical
ROHS 5mm IP67 Waterproof M5 4 Pin Connectors For Electrical

ROHS 5mm IP67 Waterproof M5 4 Pin Connectors For Electrical

Product Details

Place of Origin: China

Brand Name: BEXKOM

Certification: UL/CE/ROHS/REACH/ISO9001/ISO13485/MSDS/COC

Model Number: BK-M-XXX

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: USD1.5~9.9/pc

Packaging Details: PE bag + Carton Box

Delivery Time: 7~15 days

Payment Terms: L/C, T/T

Supply Ability: 100000pairs/month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

ROHS m5 4 pin connector

,

Waterproof m5 4 pin connector

,

ROHS m5 electrical connector

Shell Material:
Brass Chrome Plated
Insulator Material:
PA66
Waterproof IP Rate:
IP67
Mating Cycles:
>500
Salt Spray Corrosion:
>48Hours
Vibration:
10~2000Hz, 15g
Shock:
100g/6ms
Contact Material:
Brass Gold Plated
EMC Shielding:
Available
Working Temperature:
-25 ~85 Centigrade
Shell Material:
Brass Chrome Plated
Insulator Material:
PA66
Waterproof IP Rate:
IP67
Mating Cycles:
>500
Salt Spray Corrosion:
>48Hours
Vibration:
10~2000Hz, 15g
Shock:
100g/6ms
Contact Material:
Brass Gold Plated
EMC Shielding:
Available
Working Temperature:
-25 ~85 Centigrade
Product Description

Features:

  1. Panel Opening Size: 5mm
  2. Locking Mechanism: Screw locking ensures a secure and reliable connection.
  3. EMC Shielding: Designed to prevent electromagnetic interference, ensuring signal integrity.
  4. Waterproof Rating: IP67, providing protection against dust and temporary immersion in water.
  5. Contact Options: Available with 3 to 4 contacts.

Applications:

  • Sensors and Actuators: Commonly used in compact sensors and actuators where space is limited.
  • Industrial Automation: Suitable for connections in automated machinery and control systems.
  • Process Control: Ideal for use in environments requiring reliable and robust connections.

Technical Specifications:

  • Contact Material: Typically gold-plated brass or bronze for excellent conductivity and corrosion resistance.
  • Housing Material: Often made of high-grade plastic or metal for durability and protection.
  • Temperature Range: Usually operates within a wide temperature range, typically -40°C to +85°C.
  • Voltage and Current Rating: Generally low voltage and current ratings suitable for signal transmission.

Examples of Products:

  • Binder M5 Connectors: Binder offers M5 connectors with various contact configurations, screw locking, and IP67 ratings.
  • Lumberg Automation M5 Connectors: Known for their robustness and reliability, Lumberg provides M5 connectors suitable for industrial environments.
  • Molex M5 Connectors: Molex provides M5 connectors with excellent EMC shielding and IP67 protection, suitable for compact and demanding applications.

Installation and Usage:

  • Mounting: The 5mm panel opening allows for easy integration into control panels or machinery.
  • Connection: Screw locking mechanism ensures the connectors stay securely in place, even in environments with vibrations or mechanical stress.
  • Maintenance: The IP67 rating ensures that the connectors can withstand dust and temporary water immersion, making them suitable for outdoor or harsh environments.
