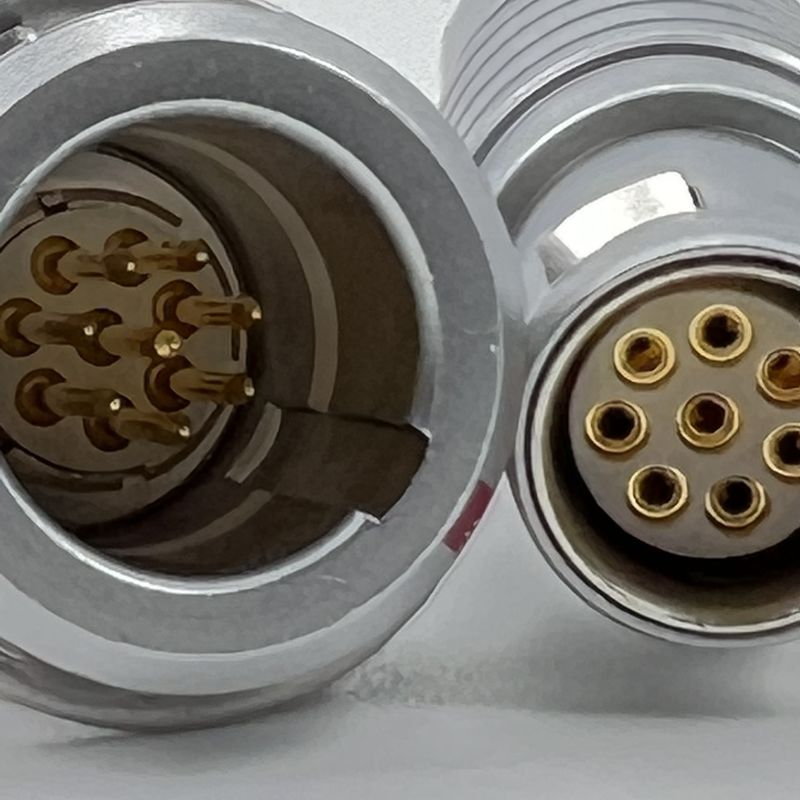

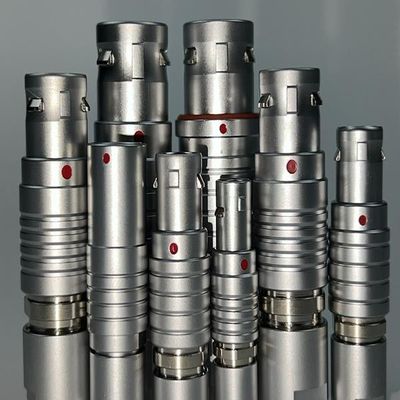

IP50 IP68 EMC Shieling Circular Push Pull Connectors 8 Pin BEXKOM

High-performance circular connector that is designed for demanding applications, particularly where robust environmental protection, electromagnetic compatibility (EMC), and reliable electrical connections are crucial. Here’s a breakdown of the features of such connectors:

Key Features:

1. Metal Shell:

   • Durability: The metal shell provides excellent mechanical strength and durability, protecting the connector from physical damage.
   • Environmental Protection: Metal shells are often used in connectors that need to withstand harsh environments, including exposure to chemicals, impacts, and high temperatures.

2. IP68 Rating:

   • Waterproof and Dustproof: An IP68 rating means the connector is completely dust-tight and can withstand continuous immersion in water (beyond 1 meter) for extended periods. This makes it suitable for outdoor or industrial applications where exposure to moisture and dust is likely.
   • Long-Term Reliability: The IP68 rating ensures that the connector can maintain its integrity and functionality even in the most challenging environments, such as in medical devices exposed to sterilization processes or industrial machinery exposed to the elements.

3. 360-Degree EMC Shielding:

   • Electromagnetic Compatibility (EMC): 360-degree shielding provides comprehensive protection against electromagnetic interference (EMI), ensuring that the connector maintains signal integrity in environments with high levels of electromagnetic noise.
   • Data Integrity: This feature is especially important in applications where data transmission needs to be accurate and uninterrupted, such as in medical equipment, military communications, and industrial automation.

4. Gold-Plated Contacts:

   • Enhanced Conductivity: Gold plating on contacts reduces contact resistance, ensuring better electrical conductivity and signal transmission.
   • Corrosion Resistance: Gold is highly resistant to corrosion, which is crucial in connectors exposed to moisture, chemicals, or other corrosive environments.
   • Longevity: Gold-plated contacts have a longer lifespan compared to non-plated contacts, making them ideal for applications requiring high reliability over time.

5. Pin Configuration (2 to 32 Pins):

   • Versatility: With configurations ranging from 2 to 32 pins, these connectors can be tailored to a wide range of applications, from simple power connections to complex data transmission setups.
   • Customizable: The number of pins can be selected based on the specific needs of the application, allowing for flexibility in design and functionality.

Applications:

• Medical Equipment: Used in devices that require secure, reliable connections and must operate in sterile environments, such as patient monitors, imaging systems, and diagnostic equipment.
• Military and Aerospace: Ideal for applications where connectors need to withstand harsh conditions, including exposure to water, dust, and extreme temperatures, while maintaining high signal integrity.
• Industrial Automation: Used in environments with high levels of electromagnetic noise, ensuring reliable data and power connections in automated machinery and control systems.
• Outdoor Equipment: Suitable for outdoor sensors, communication devices, and other equipment exposed to the elements.

Brands and Manufacturers:

1. LEMO: Offers a range of metal shell circular connectors with IP68 ratings and 360-degree EMC shielding, tailored for medical and industrial applications.
2. Amphenol: Known for high-performance connectors, including those with gold-plated contacts and various pin configurations.
3. Fischer Connectors: Specializes in rugged circular connectors that meet demanding environmental and electrical requirements.
