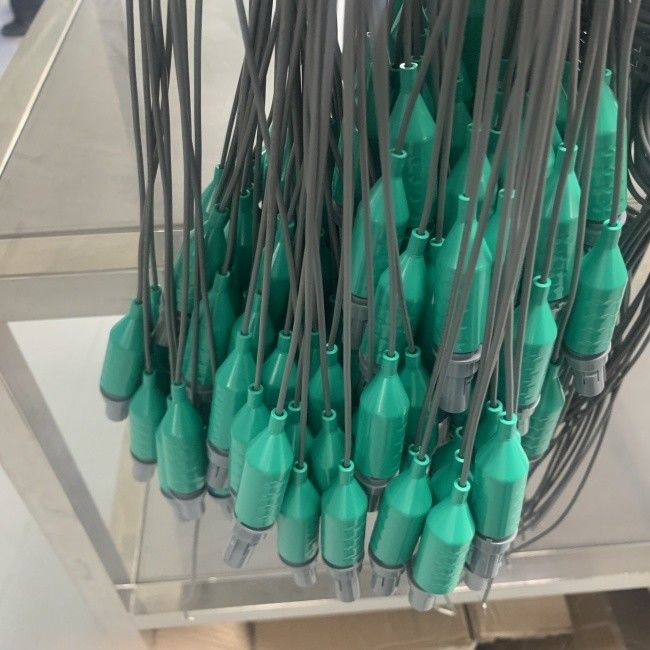

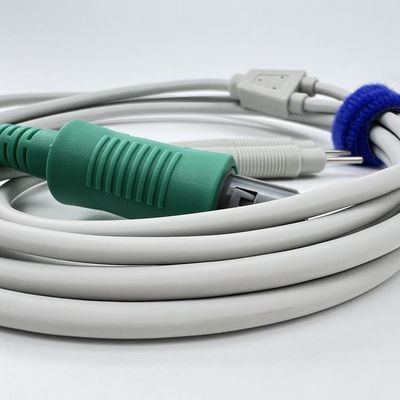

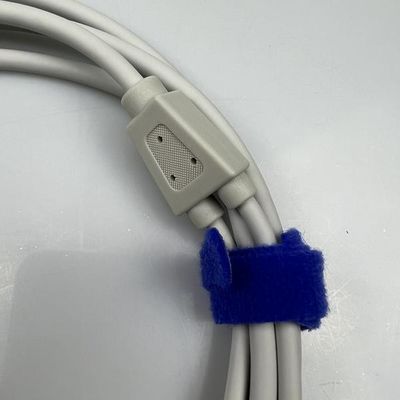

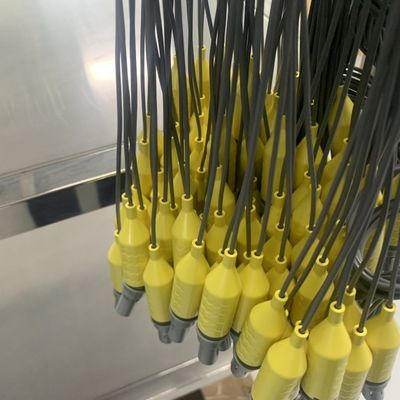

Medical Disposable TPU Wire Harness Cable Electrical Assembly ODM

Key Components and Materials

1. TPU Cable:

   • Cost-Effectiveness: TPU is a cost-effective material that offers a good balance between performance and affordability, making it suitable for disposable applications.
   • Flexibility: TPU cables are flexible, ensuring ease of use in medical settings where the cable may need to move with the patient or device.
   • Chemical Resistance: TPU is resistant to common cleaning agents and disinfectants, ensuring the cable can be cleaned if necessary before disposal.
   • Biocompatibility: Ensure the TPU material is biocompatible and meets medical standards, such as ISO 10993, to ensure safety when in contact with patients.

2. Plastic Plug:

   • Material: Use medical-grade plastic that is lightweight and inexpensive but still durable enough to withstand the necessary number of connections and disconnections during its use.
   • Design: The plug should be easy to connect and disconnect, with a simple locking mechanism to ensure a secure fit. It should also be compatible with the medical device it will connect to.
   • Overmolding (Optional): Consider overmolding the plastic plug with TPU to provide additional strain relief and improve durability.

3. Connector Type:

   • Disposable Connectors: Choose connectors that are designed for single or limited use, ensuring they are affordable while still meeting the necessary performance requirements.
   • Compatibility: Ensure the connector is compatible with existing medical devices and adheres to the necessary electrical and mechanical standards.

Design Considerations

1. Compliance with Medical Standards:

   • ISO 10993: Ensure all materials used in the cable assembly are biocompatible and meet ISO 10993 standards for medical devices.
   • IEC 60601: The assembly should comply with IEC 60601 standards for electrical safety in medical equipment, ensuring safe operation.

2. Single-Use Design:

   • Cost-Effective Manufacturing: Optimize the design for mass production to reduce costs while maintaining quality. Injection molding is a common method for producing large volumes of plastic components at a low cost.
   • Disposability: The materials and design should facilitate easy disposal after a single use, complying with medical waste regulations.

3. Environmental Sealing:

   • Basic Waterproofing: While the assembly is disposable, it should still offer basic protection against fluids, ensuring it remains functional during its intended use.
   • Sterilization Compatibility: The assembly should be capable of withstanding sterilization processes if required before use, though single-use items are often pre-sterilized.

4. Electrical Performance:

   • Signal Integrity: The cable should maintain adequate signal integrity for the duration of its use, ensuring reliable transmission of data or power.
   • Low-Cost Conductors: Use cost-effective conductive materials that meet the necessary electrical requirements without adding unnecessary expense.

Manufacturing Process

1. Prototyping:

   • Develop prototypes to test the assembly’s performance, including electrical functionality, flexibility, and durability during its intended use. Prototyping helps identify any design flaws or areas for cost reduction.

2. Assembly:

   • Cable Preparation: Cut and strip the TPU cable to the required lengths, ensuring consistency and precision for mass production.
   • Connector Attachment: Attach the plastic plug connectors using automated processes where possible to reduce labor costs.
   • Overmolding (Optional): If overmolding is used, apply it at this stage to reinforce the connection between the cable and the plug.

3. Testing:

   • Electrical Testing: Conduct basic electrical tests to ensure continuity, insulation resistance, and signal integrity meet the necessary standards.
   • Mechanical Testing: Test the assembly for durability during connection and disconnection, ensuring it can withstand the expected usage before disposal.

4. Quality Control:

   • Implement streamlined quality control processes to ensure consistency across large production volumes, focusing on key performance indicators such as electrical functionality and mechanical integrity.

Applications

• Disposable Monitoring Leads: Used for short-term patient monitoring, where the cable is disposed of after a single use or a short period.
• Single-Use Medical Devices: Connects various disposable medical devices to monitoring or control systems.
• Temporary Diagnostic Equipment: Used in devices that require temporary connections for diagnostic purposes, such as ECG or EEG leads.

Conclusion

A low-cost disposable medical cable assembly with a plastic plug and TPU cable can meet medical standards while being affordable for single-use applications. By focusing on cost-effective materials, streamlined manufacturing processes, and compliance with medical standards, you can create a reliable product that meets the needs of healthcare providers without compromising on quality or safety.
