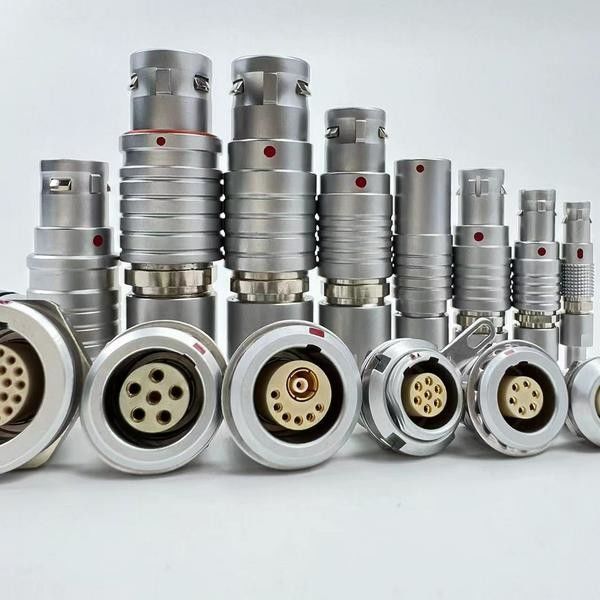

IP50 Waterproof Push Pull Electrical Connectors 8 Pin Dustproof

This type of connector is equipped with EMC (Electromagnetic Compatibility) shielding to ensure reliable signal transmission without interference. These connectors are ideal for applications requiring both high-frequency coaxial and multiple signal connections in a compact, durable form.

Key Features:

• Coaxial and Signal Integration: The connector is designed to accommodate 1 coaxial contact for high-frequency signal transmission along with 10 additional signal contacts. This allows for the simultaneous transmission of RF signals and lower-frequency electrical signals within a single connector.

• Metal Housing: The connector features a durable metal shell, often made from aluminum, stainless steel, or brass, providing excellent mechanical protection and durability in harsh environments.

• Push-Pull Locking Mechanism: The push-pull mechanism ensures a quick, secure, and reliable connection that can be easily engaged and disengaged, making it suitable for applications where rapid connectivity is required.

• EMC Shielding: The connector includes effective EMC shielding to protect both the coaxial and signal lines from electromagnetic interference, ensuring the integrity of the transmitted signals, especially in environments with high EMI.

• Waterproof and Dustproof: Often rated IP67 or higher, these connectors are sealed against dust and water ingress, making them suitable for use in outdoor or challenging industrial environments.

• High-Frequency Coaxial Performance: The coaxial contact is designed to handle high-frequency signals, making these connectors ideal for applications involving RF or other sensitive communications.

• Rugged Construction: Designed to withstand environmental challenges such as vibrations, shocks, and temperature extremes, these connectors are built to last in demanding military, aerospace, or industrial settings.

• Compact Circular Design: The circular form factor allows for a compact and efficient layout, which is particularly useful in applications where space is at a premium.

Applications:

These connectors are ideal for use in systems that require a combination of RF/coaxial and multiple signal connections, such as in military communications, aerospace systems, telecommunications equipment, and advanced industrial machinery. Their ability to integrate coaxial and signal contacts in a single, EMC-shielded connector makes them a versatile and reliable choice for complex, high-performance applications.

Typical applications include:

• Military Communication Systems: Where secure RF signals and control/data signals need to be transmitted simultaneously in a robust and field-deployable connector.
• Aerospace Systems: For use in avionics or satellite communication systems that require both high-frequency and multiple signal lines in a compact, durable connector.
• Telecommunication Equipment: In applications that require reliable RF signal transmission alongside control signals in a single connection.
• Industrial Automation: Where reliable high-frequency signal transmission and multiple control signals need to be routed through a single, rugged connector.
