ODM Circular Lemo Push Pull Connector 37 Pin for Signal Transmission

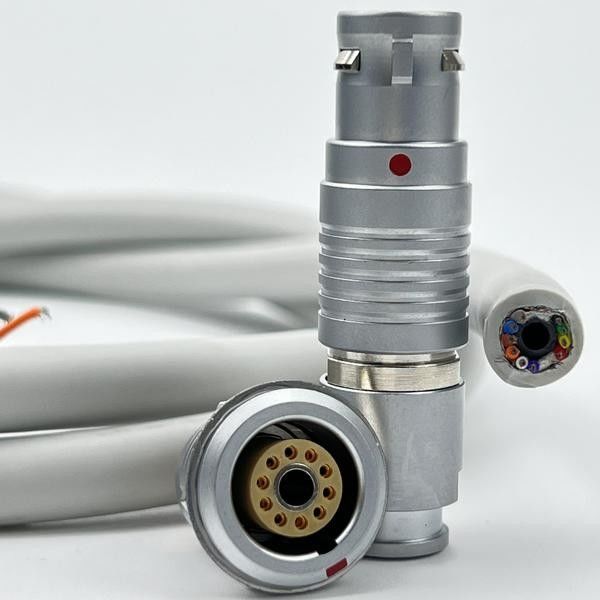

A specialized type of metal push-pull circular connector designed for transmitting both air (typically for pneumatic systems) and multiple electrical signals, with EMC (Electromagnetic Compatibility) shielding to protect against interference. These connectors are ideal for applications requiring both pneumatic and electrical connectivity in a single, compact, and reliable unit.

Key Features:

• Combined Air and Signal Transmission: The connector is designed to handle 1 air line (pneumatic) along with 10 electrical signal contacts. This combination allows for simultaneous transmission of air pressure and electrical signals through a single connector.

• Metal Housing: Constructed with a durable metal shell, typically aluminum or stainless steel, providing robust mechanical protection and resistance to harsh environmental conditions.

• Push-Pull Locking Mechanism: The push-pull mechanism allows for quick and secure connection and disconnection. This type of mechanism is easy to operate, even in confined spaces or with limited visibility, making it ideal for field use.

• EMC Shielding: The connector is equipped with effective EMC shielding to protect the electrical signals from electromagnetic interference. This ensures the integrity of the transmitted data and reduces the risk of signal degradation or noise.

• Waterproof and Dustproof: Often designed with an IP67 or higher rating, these connectors are sealed against water and dust, ensuring reliable performance in outdoor and harsh environments.

• High Durability: Engineered to withstand physical stresses such as vibrations, shocks, and impacts, making them suitable for military, aerospace, and industrial applications.

• Compact and Efficient Design: The circular form factor is space-efficient, allowing for easy integration into systems where both air and electrical connections are required in a compact area.

• Versatile Applications: Suitable for use in systems where pneumatic actuation and signal transmission are necessary, such as in military communication devices, industrial automation, robotics, and aerospace equipment.

Applications:

These connectors are particularly useful in environments where both pneumatic and electrical needs must be met simultaneously, such as in portable communication systems, military-grade equipment, industrial machinery, and aerospace applications. The push-pull design, combined with EMC shielding and robust construction, makes them a reliable choice for demanding applications where quick and secure connections are essential.
