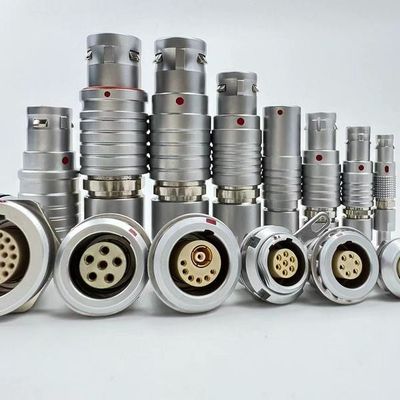

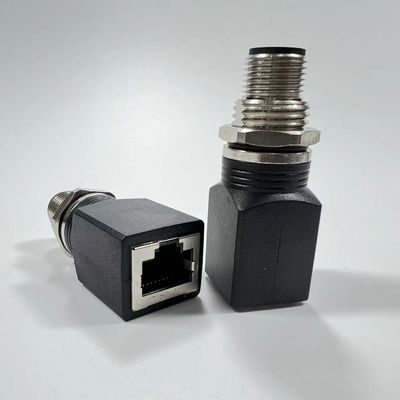

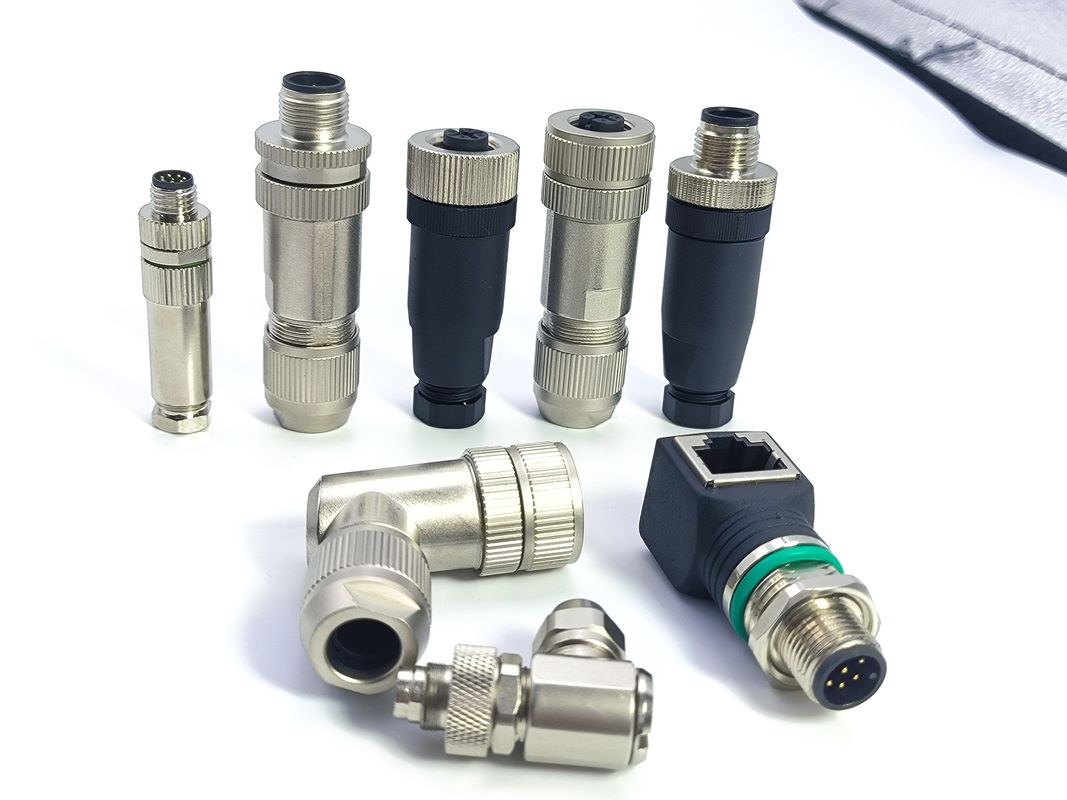

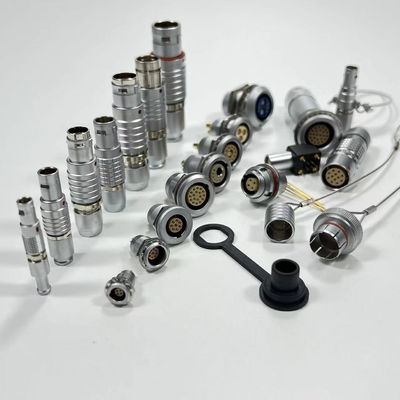

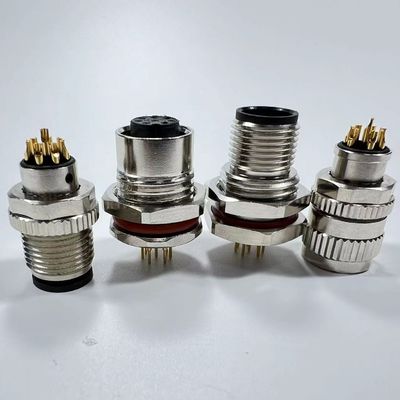

BEXKOM Circular IP67 Electrical Connectors For Industrial Testing Instrument Robot

Let's break down the key aspects of circular connectors suitable for industrial testing instruments, devices, robots, and automotive applications:

1. Application Areas:

   • Industrial testing instruments
   • Industrial devices
   • Robotics
   • Automotive applications

2. Connector Type: Circular

Let's elaborate on these connectors and their characteristics for these applications:

1. General Characteristics:

   • Robust design for durability in industrial environments
   • Reliable connections to ensure consistent performance
   • Often feature locking mechanisms to prevent accidental disconnection
   • Range of sizes to accommodate different space constraints and contact requirements

2. Environmental Protection:

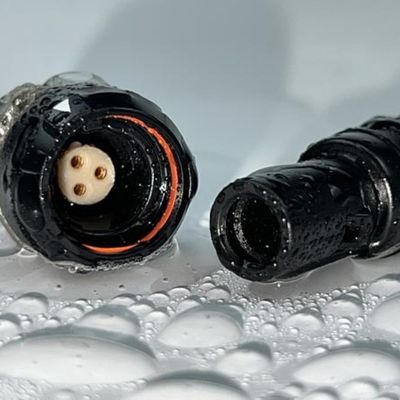

   • Typically rated IP65 to IP68 for protection against dust and water ingress
   • Resistant to vibration and shock, which is crucial in automotive and robotics applications
   • Some variants may offer chemical resistance for harsh industrial environments

3. Contact Options:

   • Wide range of contact counts (e.g., 2 to 30+ contacts) to suit various signal and power requirements
   • Options for mixed signal/power contacts within a single connector
   • Gold-plated contacts for improved conductivity and corrosion resistance

4. EMI/RFI Shielding:

   • Metal housing options for improved electromagnetic interference (EMI) and radio-frequency interference (RFI) shielding
   • Critical for maintaining signal integrity in noisy industrial and automotive environments

5. Materials:

   • Metal versions (e.g., aluminum alloy, brass, stainless steel) for durability and EMI shielding
   • High-grade plastic versions for weight reduction and cost-effectiveness where appropriate

6. Connection Types:

   • Push-pull for quick connect/disconnect
   • Threaded coupling for secure connections in high-vibration environments
   • Bayonet style for quick, secure connections

7. Electrical Characteristics:

   • Wide range of voltage and current ratings to accommodate various power requirements
   • Low contact resistance for efficient power and signal transmission
   • High insulation resistance

8. Speed and Data Capabilities:

   • Options for high-speed data transmission for testing instruments and modern automotive systems
   • Variants supporting protocols like Ethernet, USB, HDMI for complex industrial and automotive applications

9. Temperature Range:

   • Wide operating temperature range to suit various industrial and automotive environments

10. Industry Standards Compliance:

    • Compliance with relevant industry standards (e.g., ISO, SAE for automotive)
    • Some may meet military specifications for ruggedness

Specific considerations for each application area:

a) Industrial Testing Instruments:

• High accuracy and reliability for precise measurements
• Often require shielding for sensitive measurements
• May need to support various signal types (analog, digital, RF)

b) Industrial Devices:

• Ruggedness for long-term use in factory environments
• May require high power handling for motor controls or large machinery

c) Robotics:

• Flexibility and durability for repeated movements
• Often require compact designs for integration into robotic joints
• May need to support power, data, and control signals in a single connector

d) Automotive:

• Must withstand extreme temperatures and vibrations
• Often require sealing against fluids and contaminants
• May need to support high-speed data for modern vehicle electronics

These circular connectors provide versatile, reliable, and durable connection solutions across a range of demanding industrial and automotive applications. They can be customized to meet specific requirements in terms of size, contact count, environmental protection, and electrical characteristics.
