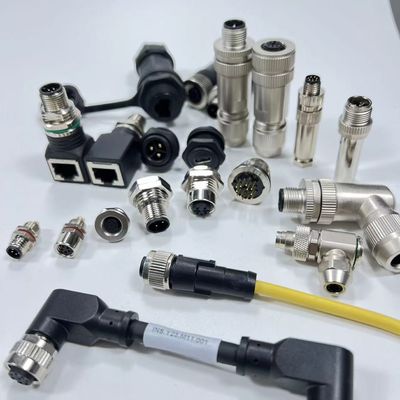

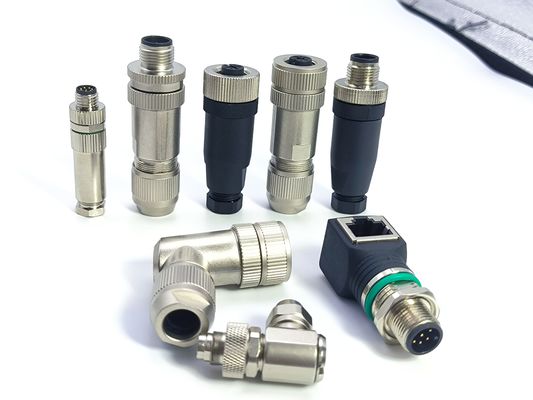

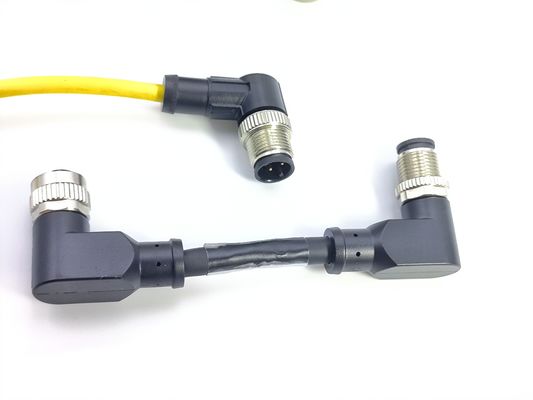

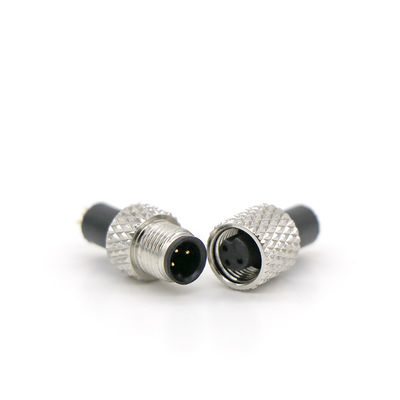

IP67 Waterproof Circular Connector M5 M8 M9 M12 M16 M23 With Cable Overmoulding

sizes:

M5 Connectors

• Application: Primarily used for sensor/actuator connections in compact devices.
• Pin Configuration: Usually up to 5 pins.
• Features: Compact size, suitable for tight spaces, IP67 rating for dust and water protection.

M8 Connectors

• Application: Widely used in factory automation, process control, and industrial instrumentation.
• Pin Configuration: Commonly 3 to 8 pins.
• Features: Robust, high-frequency signal transmission, IP67/IP68 rating, screw-lock mechanism.

M9 Connectors

• Application: Often used in industrial electronics and control systems.
• Pin Configuration: Typically 4 to 8 pins.
• Features: Slightly larger than M8, enhanced durability, IP67 rating, suitable for sensor connections.

M12 Connectors

• Application: Versatile, used in sensors, actuators, and fieldbus networks in industrial automation.
• Pin Configuration: Ranges from 3 to 12 pins.
• Features: High versatility, excellent signal integrity, IP67/IP68 rating, screw-lock or push-pull locking mechanism.

M16 Connectors

• Application: Power supply and signal transmission in industrial machinery.
• Pin Configuration: Typically 3 to 12 pins.
• Features: Higher current capacity, durable, IP67 rating, suitable for rugged environments.

M23 Connectors

• Application: Industrial automation, robotics, and machinery requiring high power and signal connections.
• Pin Configuration: Commonly 6 to 19 pins.
• Features: High power and signal capacity, robust and reliable, IP67 rating, screw-lock mechanism.

General Features Across M-Series Connectors

• Durability: Designed to withstand harsh industrial environments, including extreme temperatures, vibrations, and mechanical stress.
• Water and Dust Protection: Most connectors offer IP67 or higher ratings, ensuring protection against dust and water ingress.
• Ease of Connection: Screw-lock, bayonet, or push-pull mechanisms for secure and easy installation.
• Customization: Available in various configurations to meet specific application requirements, including different pin counts, cable lengths, and materials.
